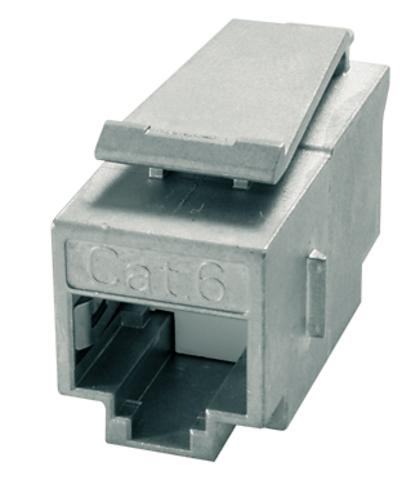

| Technical Attributes | |
| Short name | AMJ Coupler K Cat.5e, f-f |
| Remarks | suitable for RJ45/11/12 plugs |
| Mount. dim. | Z121 |
0
| Mechanical Characteristics | |
| Insertion force | ≤ 30 N |
| Life (mating cycles RJ45, RJ12, RJ11) | ≥ 750 |
| Material: housing | zinc diecast |
| Material: insulating housing | ABS alpine white |
| Material: snap-fit | zinc diecast |
| Material: shield | German silver |
| Material: insulators | PA |
| Material: PCB | FR4 |
| Material: PCB finish | chem. tin-plated |
| Material: contact spring | spring steel |
| Material: contact spring finish | min. 0,8 µm (µin) Au on 1,2 µm (50µin) Ni |
| Material: contact IDC termination | |
| Material: IDC termination finish | |
| Cu-Conductor diameter: solid | |
| Cu-Conductor diameter: stranded | |
| Insulation diameter | |
| Reusable IDC für AWG 23/1 – AWG 26/1 | |
| Reusable IDV for AWG 24/7 – 27/7 | |
| Cable diameter | – |
| Electrical Characteristics | |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 500 MΩ |
| Voltage proof: contact-contact | ≥ 1000 V, DC |
| Voltage proof: contact-shield | ≥ 1500 V, DC |
| Current carrying capacity at 50°C | 1 A |
| PoE+ acc to IEEE 802.3at | PoE+ |
| Standards | |
| Connectors | IEC 60603-7-5 / -7-3 |
| Transmission Characteristics | |
| Category 6A (Component) | – |
| Class EA (Permanent Link) | – |
| Class EA (Channel) | ISO/IEC 11801, DIN EN 50173-1 |
| Class E (Channel with Coupler Cat.6) | ISO/IEC 11801, DIN EN 50173-1 |
| Class D (Channel with Coupler Cat.5e) | ISO/IEC 11801, DIN EN 50173-1 |
| Gigabit Ethernet acc. to IEEE 802.3 | fullfilled by Cat.5e, Cat.6 |
| 10 Gigabit Ethernet acc. to IEEE 802.3an | fullfilled by Cat.6 |
| Acceccory of | ||
 |
J00029A0042 | STX V6 Bulkhead without mounting set |
 |
J00029A0040 | STX V6 Bulkhead with Mounting Set |
Only logged in customers who have purchased this product may leave a review.
Signup for news and special offers!

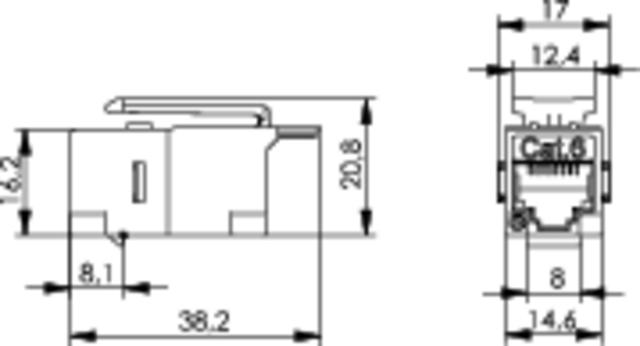

mounting dimensions
