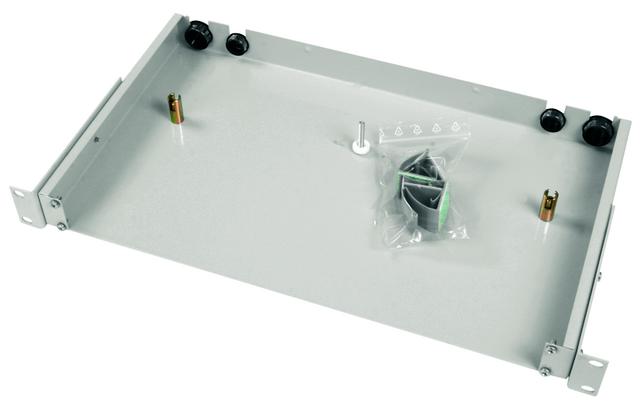

Housing BASIS V 1 HU

Product description

19“ Patch Panels for Fiber Optic Cables are suitable for distribution of multifiber cables to single cables, either as a distribution frame or – with closed housing – for storage of splice cassettes. They may be integrated into all standard 19“ racks and – due to the modular design – be varied in accordance with the individual requirements of the customer. Housings and front plates are available in up to 3 HU. All the neccessary accessories such as cable glands, splice cassettes, FO adaptors and fixing parts may be individually combined and also assembled, if required. There is also available a selection of completely assembled patch panels supplied with efficient accessories, suitable for most of the applications. The 19“ Patch Panel series includes the types ECONOMY V, BASIS V, BASIS eco, PROFI V and PROFI Plus, PROFI T.

Housing with each 2 cable entries for M20 and M25 glands, front plate, 1 cable gland M25 for 9-13 mm dia., 1 cable gland M20 for 5-9 mm dia., each 2 covers for M20 amd M25 entries, splice cassette with integrated crimp splice holders for max. 24 fibers each, cover for splice cassette, adaptors and pigtails see tables, completely assembled.Panels with pigtails include crimp splice protectors type Telekom and marking strip.

scope of delivery

• Housing with each 2 cable entries for M20 and M25 glands, front plate, 1 cable gland M25 for 9-16 mm dia., 1 cable gland M20 for 5-9 mm dia., each 2 covers for M20 amd M25 entries, splice cassette system NOKIA with 2 integrated crimp splice holders for 12 fibers each, cover for splice cassette, adaptors and pigtails see tables, completely assembled. Panels with pigtail 9/125 or 50/125 include crimp splice protectors type Telekom and marking strip.
